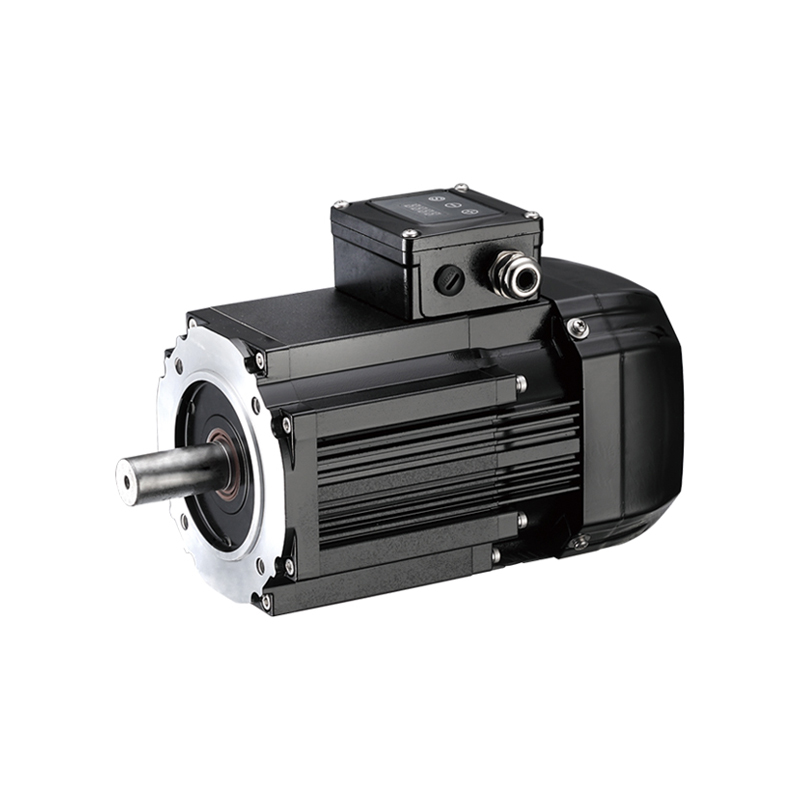

How to Select the Right ATEX Motor for Your Application

2025-10-20 14:42:12

Introduction

Selecting the right ATEX Motor for your application is crucial to ensure safety, efficiency, and compliance in hazardous environments. ATEX (derived from the French "Atmosphères Explosibles") refers to the European Union directives that regulate equipment used in explosive atmospheres. Choosing the correct Motor involves understanding the classification of hazardous zones, motor specifications, and application requirements. This guide will walk you through the key considerations when selecting an ATEX-certified motor.

Understanding ATEX Directives

Before selecting an ATEX motor, it's essential to understand the ATEX directives:

1. ATEX 2014/34/EU (Equipment Directive) – Covers the design and manufacturing of equipment intended for use in explosive atmospheres.
2. ATEX 1999/92/EC (Workplace Directive) – Focuses on the safety of workers in hazardous environments.

These directives classify hazardous areas into zones based on the likelihood and duration of explosive gas or dust presence.

Hazardous Area Classification

ATEX zones are divided into two main categories:

Gas Atmospheres (Zones 0, 1, 2)
- Zone 0 – Explosive gas atmosphere is present continuously or for long periods.
- Zone 1 – Explosive gas atmosphere is likely to occur under normal operation.
- Zone 2 – Explosive gas atmosphere is unlikely and, if it occurs, will exist only briefly.

Dust Atmospheres (Zones 20, 21, 22)
- Zone 20 – Explosive dust cloud is present continuously or frequently.
- Zone 21 – Explosive dust cloud may form occasionally.
- Zone 22 – Explosive dust cloud is unlikely but possible for short periods.

The motor’s ATEX certification must match the zone where it will be installed.

Key Factors in Selecting an ATEX Motor

1. Motor Protection Type (Ex Protection Methods)
ATEX motors use different protection methods to prevent ignition. The most common types include:

- Ex d (Flameproof Enclosure) – Contains any internal explosion and prevents ignition of external gases. Suitable for Zone 1 & 2.
- Ex e (Increased Safety) – Prevents sparks, arcs, or excessive temperatures. Ideal for Zone 1 & 2.
- Ex nA (Non-Sparking) – Designed to avoid sparks in normal operation. Used in Zone 2.
- Ex p (Pressurized Enclosure) – Uses clean air or inert gas to keep explosive gases out. Suitable for Zone 1 & 2.
- Ex t (Dust Ignition Protection) – Prevents dust ingress and overheating. Used in Zones 21 & 22.

2. Temperature Class (T-Class)
Motors must not exceed surface temperatures that could ignite surrounding gases or dust. The T-class indicates the maximum surface temperature:

- T1 (≤ 450°C)
- T2 (≤ 300°C)
- T3 (≤ 200°C)
- T4 (≤ 135°C)
- T5 (≤ 100°C)
- T6 (≤ 85°C)

The required T-class depends on the auto-ignition temperature of the hazardous substance.

3. Gas Group Classification
Explosive gases are categorized into groups based on their ignition energy:

- Group I – Mines (methane)
- Group IIA – Propane
- Group IIB – Ethylene
- Group IIC – Hydrogen, acetylene

The motor must be certified for the specific gas group present in the application.

4. Power and Efficiency Requirements
- Motor Power (kW/HP) – Ensure the motor provides sufficient power for the application.
- Efficiency (IE Class) – Higher efficiency (IE3 or IE4) reduces energy consumption and heat generation.

5. Environmental Conditions
- Ambient Temperature – Motors must operate within specified temperature ranges.
- Humidity & Corrosion Resistance – Special coatings may be required for harsh environments.
- Vibration & Mechanical Stress – Industrial applications may need rugged motor designs.

6. Certification & Compliance
Ensure the motor has:
- ATEX Marking (CE + Ex symbol)
- Third-Party Certification (e.g., IECEx, UL, or other recognized standards)

Steps to Select the Right ATEX Motor

1. Identify the Hazardous Zone – Determine whether the application is in Zone 1, 2, 21, or 22.
2. Determine the Explosive Substance – Check if the hazard is gas (Group IIA, IIB, IIC) or dust (Group III).
3. Choose the Protection Method – Select Ex d, Ex e, Ex p, or Ex t based on the zone and risk level.
4. Check Temperature Class – Match the T-class to the auto-ignition temperature of the hazardous material.
5. Verify Power & Efficiency Needs – Ensure the motor meets performance requirements.
6. Confirm Compliance & Certification – Check for ATEX, IECEx, or other relevant certifications.

Common Mistakes to Avoid

- Ignoring Zone Classification – Using a Zone 2 motor in Zone 1 can be dangerous.
- Overlooking Temperature Limits – A motor with an incorrect T-class may overheat and cause ignition.
- Choosing the Wrong Gas Group – A motor rated for IIA may not be safe for IIC gases like hydrogen.
- Neglecting Maintenance Requirements – ATEX motors need regular inspections to maintain safety.

Conclusion

Selecting the right ATEX motor requires careful consideration of hazardous zone classifications, protection methods, temperature limits, and gas/dust groups. By following these guidelines, you can ensure safety, compliance, and optimal performance in explosive environments. Always consult with experts and refer to ATEX directives before making a final decision.
