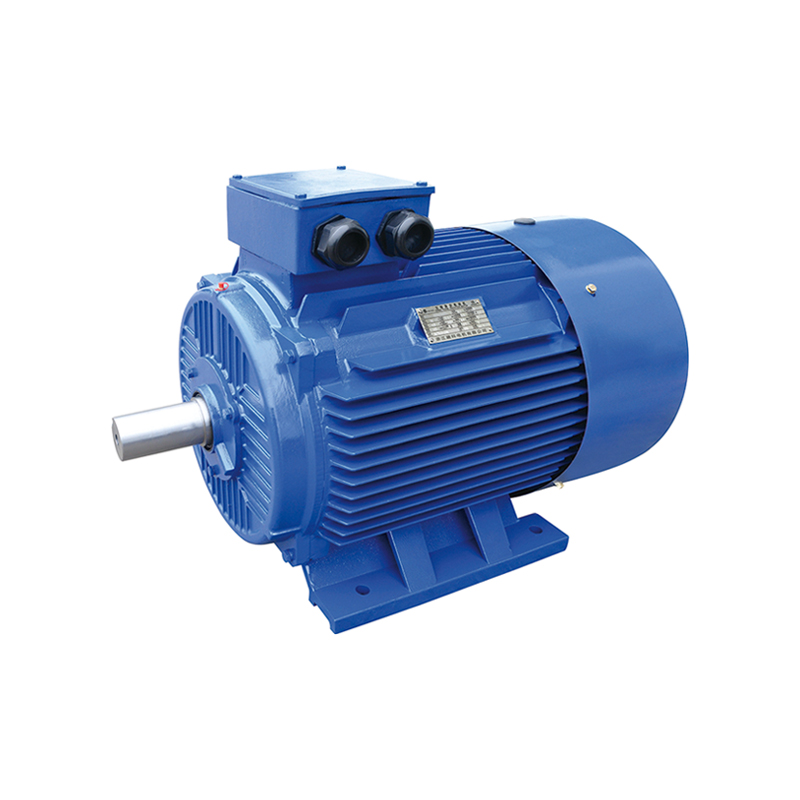

What is an ATEX Motor and How Does it Work

2025-10-20 15:51:45

Introduction
In industrial environments where flammable gases, vapors, or dust are present, safety is a top priority. Electrical equipment, including Motors, must be designed to prevent ignition and explosions. This is where ATEX Motors come into play. ATEX motors are specially engineered to operate safely in hazardous areas by minimizing the risk of sparks or excessive heat that could trigger an explosion.

This article explores what an ATEX motor is, how it works, its key components, and its applications in various industries.


What is an ATEX Motor?
An ATEX motor is an Electric Motor certified to comply with the ATEX Directive (derived from the French "Atmosphères Explosives"). The ATEX Directive is a set of European Union regulations (2014/34/EU) that governs equipment and protective systems intended for use in potentially explosive atmospheres.

These motors are designed to prevent ignition sources, such as sparks or high temperatures, from coming into contact with flammable substances. They are commonly used in industries like oil and gas, chemical processing, mining, pharmaceuticals, and food processing, where explosive atmospheres may exist.


How Does an ATEX Motor Work?
ATEX motors function similarly to standard electric motors but incorporate additional safety features to prevent explosions. The key principles behind their operation include:

1. Explosion-Proof Enclosure
ATEX motors are housed in rugged, sealed enclosures that prevent internal sparks or heat from escaping and igniting surrounding flammable gases or dust. The enclosure is typically made of durable materials like cast iron or aluminum, capable of withstanding internal explosions without rupturing.

2. Temperature Control
Motors generate heat during operation, which can be dangerous in explosive environments. ATEX motors are designed to keep surface temperatures below the auto-ignition point of surrounding gases or dust. This is achieved through:
- Enhanced cooling systems (e.g., fan cooling with non-sparking materials)
- Thermal protection devices that shut down the motor if temperatures exceed safe limits

3. Spark Prevention
Standard motors can produce sparks due to brush contacts (in brushed motors) or electrical arcing. ATEX motors mitigate this risk by:
- Using brushless designs (e.g., induction motors or permanent magnet motors)
- Incorporating flameproof (Ex d) or increased safety (Ex e) protection methods

4. Sealing Against Dust and Gas Ingress
In hazardous environments, dust or gas entering the motor can lead to internal explosions. ATEX motors use:
- IP-rated enclosures (e.g., IP65 or higher) to prevent dust and moisture ingress
- Special sealing techniques (e.g., gaskets and labyrinth seals)

5. Certification and Compliance
ATEX motors must undergo rigorous testing to meet specific Ex protection categories, such as:
- Zone 0/20 (continuous explosive atmosphere) – Requires Ex ia (intrinsic safety)
- Zone 1/21 (likely explosive atmosphere) – Uses Ex d (flameproof) or Ex e (increased safety)
- Zone 2/22 (occasional explosive atmosphere) – May use Ex n (non-sparking) or Ex p (pressurized)

Key Components of an ATEX Motor
To ensure safe operation, ATEX motors incorporate several critical components:

1. Explosion-Proof Housing
- Made of robust materials to contain internal explosions
- Designed with flame paths to cool escaping gases

2. Non-Sparking Materials
- Bearings, brushes (if used), and internal wiring are made from materials that minimize friction and arcing

3. Thermal Monitoring Systems
- Embedded temperature sensors to prevent overheating
- Automatic shutdown mechanisms if unsafe conditions are detected

4. Specialized Electrical Connections
- Flameproof cable glands to prevent gas or dust entry
- Sealed terminal boxes

5. Enhanced Ventilation (if applicable)
- Some ATEX motors use pressurized enclosures (Ex p) to keep explosive gases out


Applications of ATEX Motors
ATEX motors are essential in industries where explosive atmospheres are a concern. Some common applications include:

1. Oil & Gas Industry
- Drilling rigs, refineries, and pipelines handling flammable hydrocarbons

2. Chemical & Pharmaceutical Manufacturing
- Processing volatile solvents, powders, or reactive chemicals

3. Mining & Underground Operations
- Coal mines where methane gas and combustible dust pose risks

4. Food & Grain Processing
- Flour mills, sugar plants, and grain silos where fine dust can explode

5. Wastewater Treatment & Biogas Plants
- Handling methane and other explosive gases


Conclusion
ATEX motors play a crucial role in ensuring safety in hazardous environments by preventing explosions caused by electrical sparks or excessive heat. Through specialized enclosures, temperature controls, and spark-resistant designs, these motors comply with strict ATEX regulations to protect workers and equipment.

Industries dealing with flammable substances must carefully select the appropriate ATEX motor based on their specific zone classification and protection type (Ex d, Ex e, Ex ia, etc.). By doing so, they can maintain operational efficiency while minimizing explosion risks.

Understanding how ATEX motors work helps industries make informed decisions when choosing explosion-proof equipment, ensuring compliance with safety standards and reducing workplace hazards.


Final Thoughts
Investing in ATEX-certified motors is not just a regulatory requirement—it’s a critical safety measure. Whether in oil refineries, chemical plants, or grain storage facilities, these motors provide reliable performance while mitigating the dangers of explosive atmospheres.
