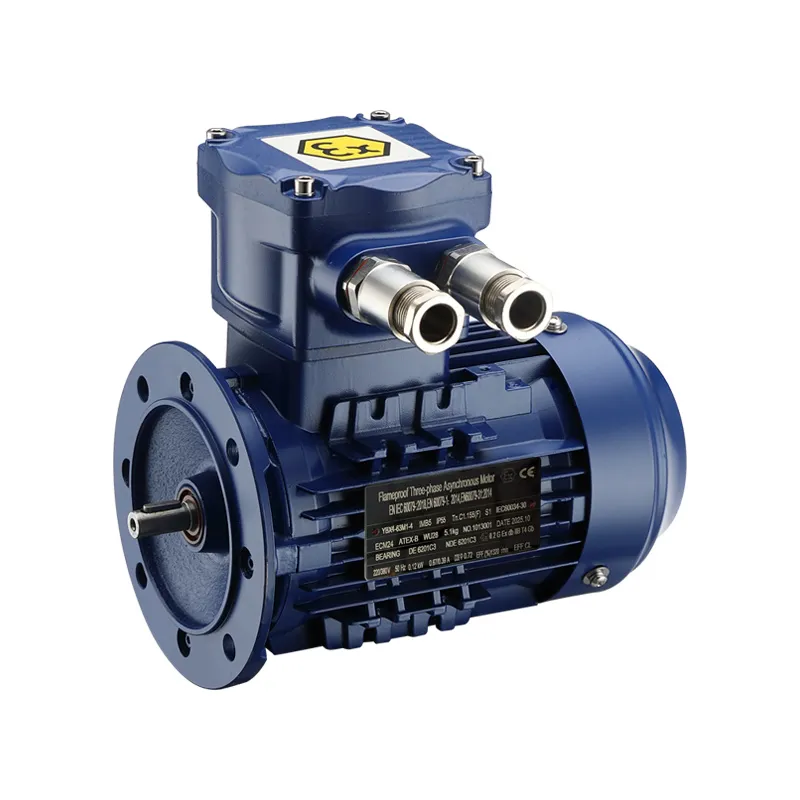

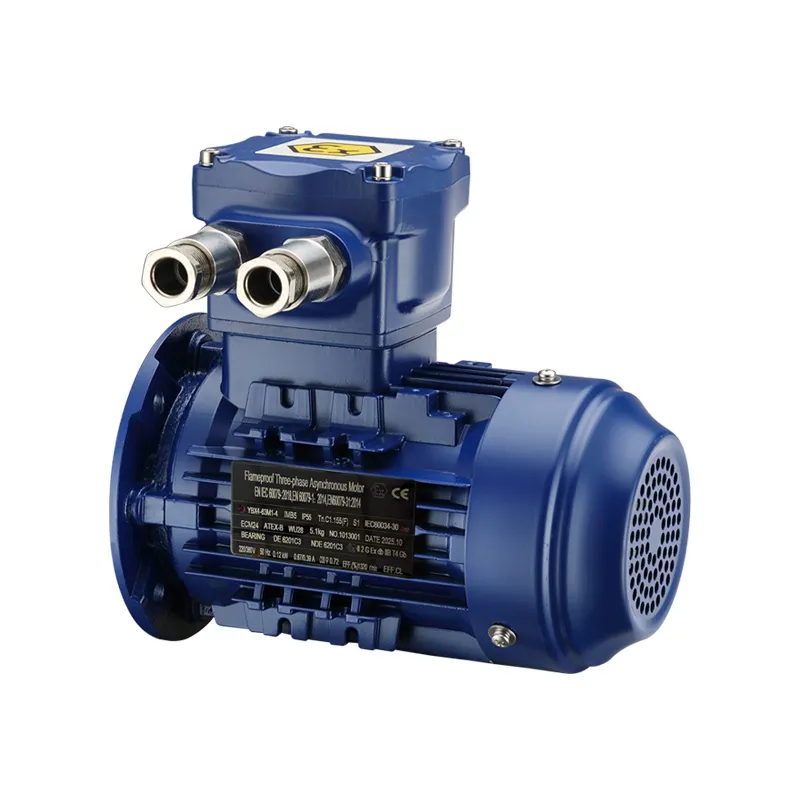

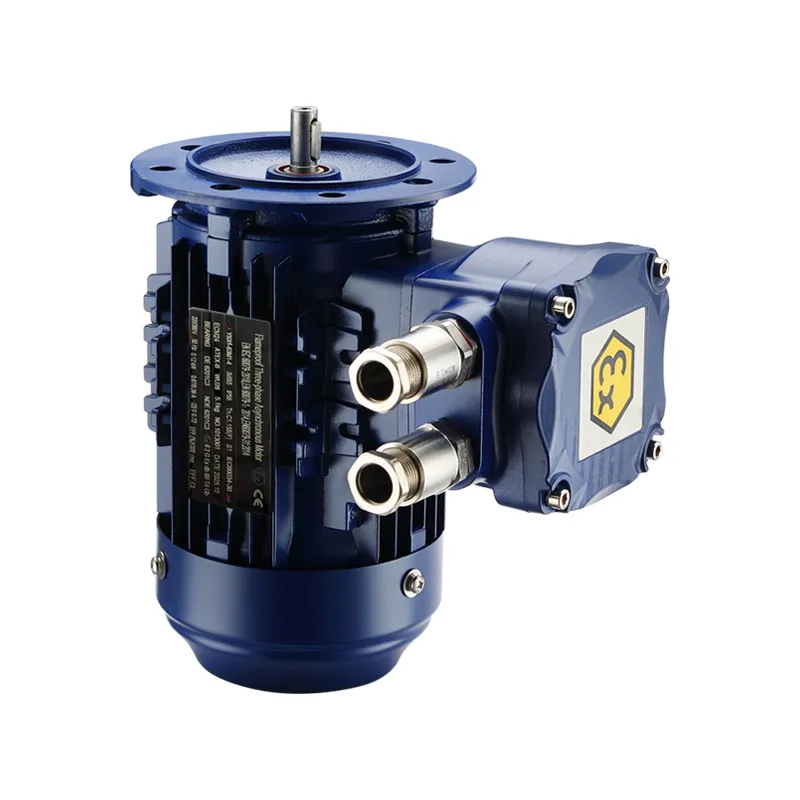

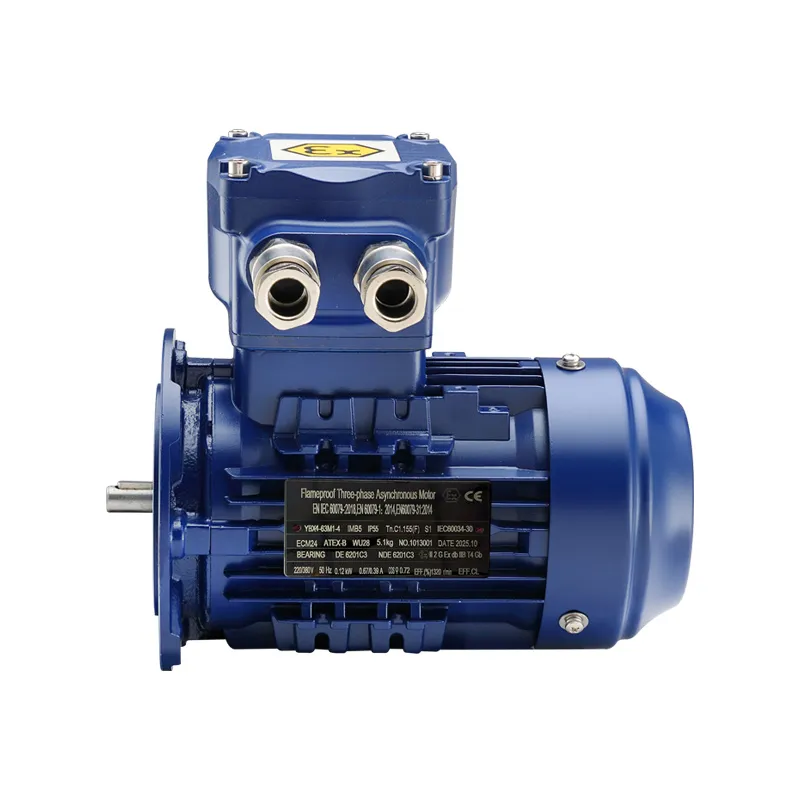

ATEX Motor with Brake and Terminal Box: A Comprehensive Guide

Introduction
In industrial environments where explosive atmospheres are present, safety and reliability are paramount. Equipment used in such hazardous areas must comply with stringent regulations to prevent ignition risks. One critical component in these settings is the ATEX Motor with brake and terminal box, designed to operate safely in explosive atmospheres while providing precise control and connectivity. This article explores the features, applications, and benefits of ATEX-compliant motors equipped with brakes and terminal boxes, ensuring optimal performance in high-risk industries.


1. Understanding ATEX Motors
ATEX motors are specifically engineered to meet the ATEX Directive (2014/34/EU), which governs equipment used in explosive atmospheres. These motors are certified for use in zones where flammable gases, vapors, or dust may be present. Key characteristics include:
- Explosion-proof enclosure: Prevents internal sparks or heat from igniting external hazardous substances.
- Temperature classification (T-rating): Ensures surface temperatures remain below the auto-ignition point of surrounding gases or dust.
- Robust construction: Often made of corrosion-resistant materials like stainless steel or aluminum.

Why Choose an ATEX Motor?
- Compliance with EU safety standards.
- Reduced risk of explosions in hazardous zones (Zone 1, Zone 2 for gases; Zone 21, Zone 22 for dust).
- Enhanced durability in harsh environments.


2. The Role of Brakes in ATEX Motors
An ATEX motor with brake integrates a fail-safe braking mechanism, crucial for applications requiring immediate stopping or holding loads.

Key Features of ATEX Brake Motors
- Spring-loaded brakes: Engage automatically during power loss to prevent uncontrolled motion.
- ATEX certification: Brakes are designed to avoid sparking or overheating.
- Adjustable torque: Allows precise control over braking force.

Applications
- Conveyor systems: Halts movement during emergencies.
- Hoists and cranes: Secures loads in place.
- Mining equipment: Ensures safety in methane-rich atmospheres.


3. Terminal Boxes in ATEX Motors
The terminal box in an ATEX motor provides a secure enclosure for electrical connections, ensuring compliance with explosion-proof requirements.

Design and Functionality
- Explosion-proof enclosure: Seals off internal sparks.
- Cable glands: Prevent gas or dust ingress.
- Material options: Aluminum for lightweight use, cast iron for heavy-duty environments.

Benefits
- Simplifies maintenance and wiring.
- Protects connections from moisture, dust, and mechanical damage.
- Facilitates compliance with IECEx and other international standards.


4. Applications of ATEX Motors with Brake and Terminal Box
These motors are indispensable in industries where safety and precision are critical:

Oil & Gas
- Offshore platforms, refineries.
- Pumps and compressors handling flammable fluids.

Chemical & Pharmaceutical
- Mixers, agitators in explosive dust environments.
- Ventilation systems.

Mining
- Underground equipment exposed to combustible dust or gases.

Food Processing
- Grain silos with potential dust explosions.


5. Selection Criteria for ATEX Motors
When choosing an ATEX motor with brake and terminal box, consider:
1. Zone classification: Match the motor’s certification to the hazardous zone (e.g., Zone 1 vs. Zone 2).
2. Power and speed requirements: Ensure the motor meets operational demands.
3. Environmental factors: Corrosion resistance, ingress protection (IP rating).
4. Brake specifications: Torque, response time, and fail-safe features.
5. Terminal box compatibility: Size, cable entry options, and material.


6. Maintenance and Safety Tips
- Regular inspections: Check for wear, corrosion, or damage to the enclosure.
- Brake testing: Verify engagement/disengagement during maintenance.
- Certification updates: Ensure ongoing compliance with ATEX standards.


Conclusion
The ATEX motor with brake and terminal box is a vital solution for hazardous environments, combining explosion-proof safety, reliable braking, and secure electrical connectivity. By adhering to ATEX directives and selecting the right motor for specific applications, industries can significantly mitigate risks while maintaining operational efficiency. Whether in oil rigs, chemical plants, or mining operations, these motors deliver the performance and safety required in the most challenging conditions.

Company Factory

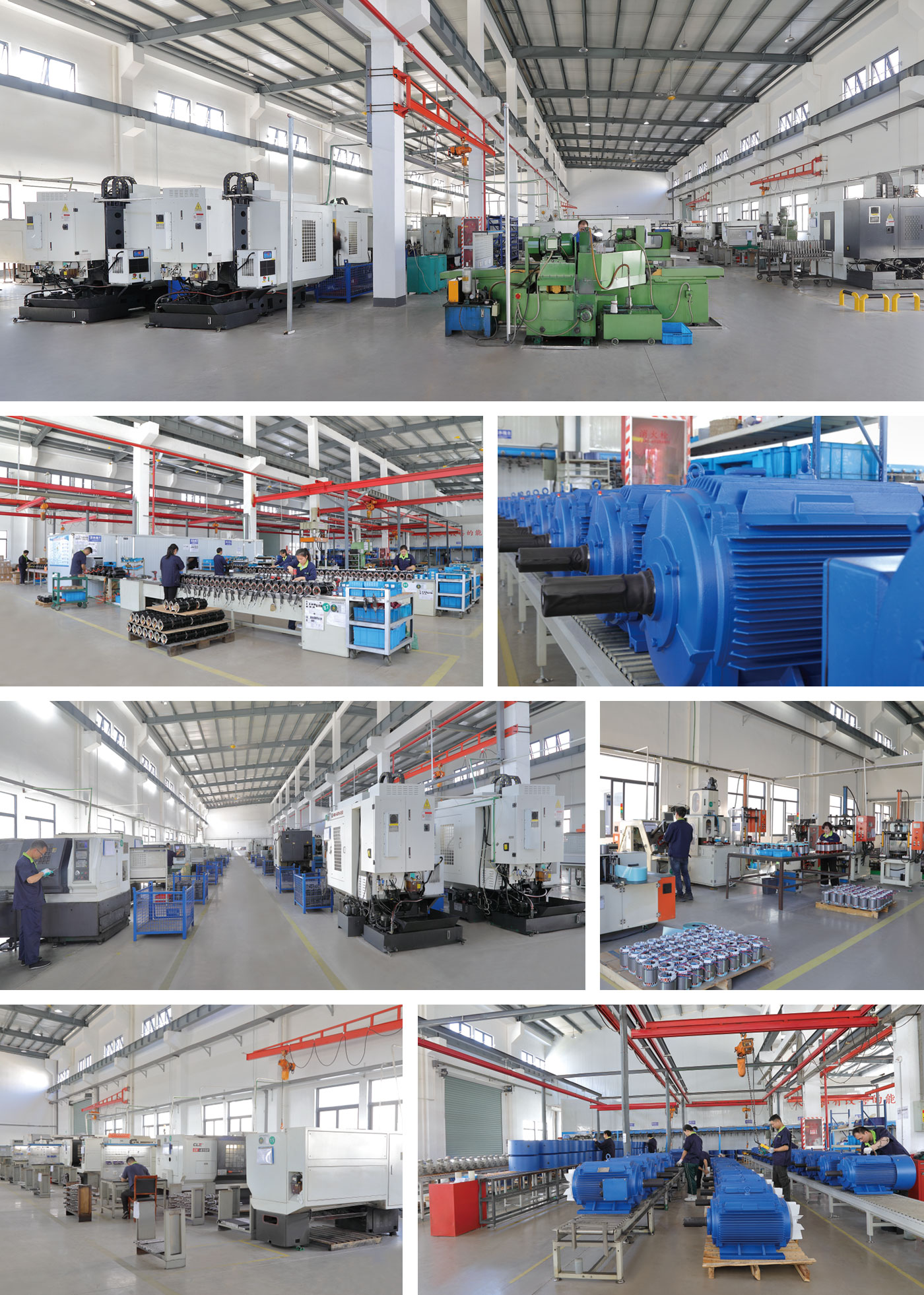

Production Workshop
