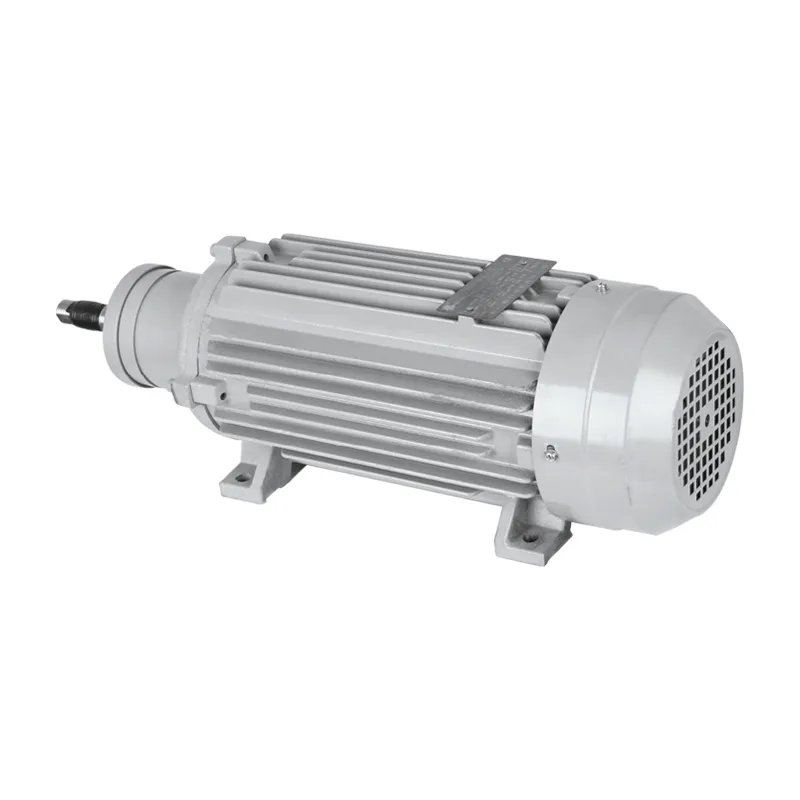

IE3 Efficiency Three Phase Asynchronous Electric Motor: A Comprehensive Overview

Introduction
The IE3 efficiency three-phase asynchronous Electric Motor is a cornerstone of modern industrial and commercial applications, offering a balance of performance, reliability, and energy efficiency. As global energy regulations tighten and sustainability becomes a priority, these motors have gained prominence due to their ability to reduce operational costs and environmental impact. This article explores the design, working principles, advantages, applications, and future trends of IE3 efficiency Three-Phase Asynchronous Motors.


1. Understanding Three-Phase Asynchronous Motors
A three-phase asynchronous motor, also known as an induction motor, operates on the principle of electromagnetic induction. It consists of two main components:
- Stator: The stationary part with three-phase windings that create a rotating magnetic field when energized.
- Rotor: The rotating part, typically a squirrel-cage design, which induces currents to generate torque.

Unlike synchronous motors, asynchronous motors do not require external excitation for the rotor, making them simpler and more robust for industrial use.


2. IE3 Efficiency: What Does It Mean?
The IE3 efficiency class is defined by the International Electrotechnical Commission (IEC) standard IEC 60034-30-1, which categorizes motors based on their energy performance. IE3 represents "Premium Efficiency," with motors in this class achieving significantly lower energy losses compared to older IE1 (Standard Efficiency) and IE2 (High Efficiency) models.

Key Efficiency Metrics
- IE1: Standard Efficiency (comparable to NEMA Standard)
- IE2: High Efficiency (comparable to NEMA Energy Efficient)
- IE3: Premium Efficiency (mandatory in many regions under EU Ecodesign regulations)
- IE4: Super Premium Efficiency (emerging standard)

IE3 motors typically achieve 2-6% higher efficiency than IE2 motors, translating to substantial energy savings over their lifespan.


3. Design Features of IE3 Motors
To meet IE3 standards, manufacturers optimize several design aspects:

a. High-Quality Materials
- Laminations: Thinner, high-grade silicon steel laminations reduce eddy current losses.
- Windings: Copper windings (instead of aluminum) minimize resistive losses.
- Bearings: Low-friction bearings enhance mechanical efficiency.

b. Improved Cooling Systems
- Enhanced ventilation designs (e.g., optimized fan shapes) reduce thermal losses.

c. Precision Manufacturing
- Tighter tolerances in air gaps and rotor-stator alignment improve magnetic flux efficiency.


4. Advantages of IE3 Efficiency Motors

a. Energy Savings
- A 15 kW IE3 motor can save ~1,000 kWh/year compared to an IE2 motor, significantly cutting electricity costs.

b. Lower Carbon Footprint
- Reduced energy consumption directly decreases CO₂ emissions, supporting sustainability goals.

c. Compliance with Regulations
- Regions like the EU, China, and North America mandate IE3 (or equivalent) for most Industrial Motors.

d. Long-Term Reliability
- Lower operating temperatures and reduced stress on components extend motor lifespan.


5. Applications of IE3 Three-Phase Asynchronous Motors
These motors are widely used in industries requiring continuous, high-efficiency operation:

a. Industrial Machinery
- Pumps, compressors, conveyors, and CNC machines.

b. HVAC Systems
- Fans, blowers, and chillers benefit from IE3 motors' energy savings.

c. Water Treatment
- High-duty cycles in pumps and agitators make efficiency critical.

d. Agriculture
- Irrigation pumps and grain handling equipment.


6. IE3 vs. IE4: The Future of Motor Efficiency
While IE3 is currently the benchmark, IE4 Super Premium Efficiency motors are emerging, offering ~15% lower losses than IE3. However, IE3 remains the cost-effective choice for most applications due to:
- Maturity: Well-established technology and supply chains.
- Cost: IE4 motors often require advanced materials (e.g., permanent magnets), increasing upfront costs.

Regulatory shifts may eventually phase in IE4, but IE3 will dominate for years in retrofit and mid-range applications.


7. Selecting an IE3 Motor: Key Considerations
When choosing an IE3 efficiency motor, evaluate:
1. Load Profile: Match motor size to actual load (avoid oversizing).
2. Operating Hours: High-usage scenarios justify the higher upfront cost.
3. Power Supply: Ensure compatibility with voltage/frequency (e.g., 400V/50Hz or 480V/60Hz).
4. Environmental Conditions: Dusty or humid environments may require IP55+ enclosures.


8. Maintenance Tips for IE3 Motors
- Regular Inspections: Check bearings, windings, and cooling systems.
- Proper Lubrication: Use manufacturer-recommended greases.
- Voltage Balance: Unbalanced phases can reduce efficiency.


Conclusion
The IE3 efficiency three-phase asynchronous electric motor represents a pivotal advancement in energy-efficient industrial technology. By combining robust design with superior performance, these motors deliver long-term economic and environmental benefits. As industries worldwide prioritize sustainability, IE3 motors will remain indispensable, bridging the gap between conventional and next-generation solutions like IE4.

Investing in IE3 technology is not just a regulatory compliance measure—it’s a strategic decision to optimize operational efficiency and contribute to a greener future.
