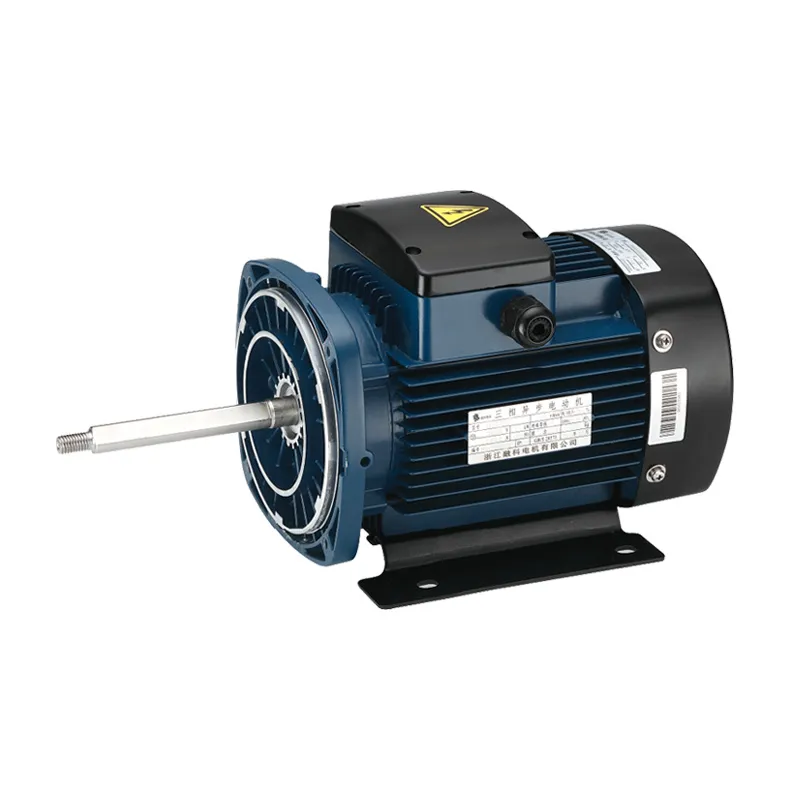

Three Phase Asynchronous Motor TEFC Design: Principles and Applications

Introduction
The Three-Phase Asynchronous Motor, also known as an induction motor, is a cornerstone of industrial and commercial applications due to its robustness, reliability, and cost-effectiveness. Among its various designs, the Totally Enclosed Fan-Cooled (TEFC) configuration stands out for its ability to operate in harsh environments while maintaining efficient thermal management. This article explores the design principles, construction features, advantages, and typical applications of TEFC three-phase asynchronous motors.


1. Fundamentals of Three-Phase Asynchronous Motors
A three-phase asynchronous motor operates on the principle of electromagnetic induction. When a three-phase AC supply is applied to the stator windings, a rotating magnetic field is generated. This field induces currents in the rotor (typically a squirrel-cage design), producing torque and causing the rotor to turn at a speed slightly lower than the synchronous speed—a phenomenon known as "slip."

Key components include:
- Stator: The stationary part with laminated steel cores and three-phase windings.
- Rotor: Usually a squirrel-cage design with conductive bars short-circuited by end rings.
- Bearings: Support the rotor shaft and reduce friction.
- Enclosure: Protects internal components from environmental factors.


2. TEFC Design: Construction and Features
The TEFC design is engineered to prevent the ingress of dust, moisture, and other contaminants while dissipating heat efficiently. Key characteristics include:

2.1 Enclosure Structure
- Totally Enclosed Housing: The motor is sealed to block external particles, making it suitable for dusty or humid environments (e.g., agriculture, mining).
- Fan Cooling: An external fan mounted on the shaft blows air over the motor’s ribbed frame, enhancing heat dissipation without exposing internal components.

2.2 Thermal Management
- Heat Dissipation: The ribbed frame increases surface area, improving convective cooling.
- Insulation Class: TEFC motors typically use Class F or H insulation, allowing operation at higher temperatures without degradation.

2.3 Material Selection
- Frame: Cast iron or aluminum for durability and heat resistance.
- Rotor Bars: Copper or aluminum for high conductivity.
- Bearings: Sealed or shielded to prevent contamination.


3. Advantages of TEFC Motors
1. Environmental Protection: Ideal for harsh conditions (dusty, wet, or corrosive atmospheres).
2. Low Maintenance: Sealed bearings and enclosures reduce wear and contamination risks.
3. Energy Efficiency: Optimized cooling and high-quality materials minimize energy losses.
4. Long Service Life: Robust construction and thermal resilience extend operational longevity.


4. Applications of TEFC Three-Phase Asynchronous Motors
TEFC motors are widely used in industries requiring reliable operation under challenging conditions:
- Industrial Machinery: Pumps, compressors, conveyors.
- HVAC Systems: Fans, blowers, chillers.
- Agriculture: Irrigation pumps, grain handling equipment.
- Marine and Offshore: Equipment exposed to moisture and salt.
- Mining and Construction: Crushers, drills, and heavy-duty machinery.


5. Design Considerations for Optimal Performance
To ensure efficiency and reliability, engineers must address:
- Load Matching: Selecting the correct power rating to avoid underloading or overheating.
- Cooling Requirements: Ensuring adequate airflow, especially in high-ambient-temperature environments.
- Voltage and Frequency Compatibility: Matching motor specifications to the power supply (e.g., 400V/50Hz or 480V/60Hz).
- Starting Method: Direct-on-line (DOL), star-delta, or soft starters to reduce inrush current.


6. Challenges and Solutions in TEFC Motor Design
6.1 Overheating
- Solution: Use of high-grade insulation, improved fan designs, or auxiliary cooling for high-duty cycles.

6.2 Bearing Failures
- Solution: Sealed bearings and regular lubrication checks.

6.3 Noise and Vibration
- Solution: Precision balancing of the rotor and vibration-damping mounts.


7. Future Trends in TEFC Motor Technology
1. IE4/IE5 Efficiency Standards: Adoption of ultra-premium efficiency designs to reduce energy consumption.
2. Smart Motors: Integration with IoT for predictive maintenance and real-time monitoring.
3. Advanced Materials: Lightweight composites and high-temperature superconductors for improved performance.


Conclusion
The three-phase asynchronous motor with a TEFC design is a versatile and durable solution for demanding industrial applications. Its sealed construction, efficient cooling, and robust materials make it indispensable in environments where reliability and longevity are critical. As technology advances, TEFC motors will continue to evolve, offering greater efficiency, connectivity, and sustainability for modern industries.

By understanding its design principles and applications, engineers and end-users can optimize performance and ensure seamless integration into diverse operational systems.
