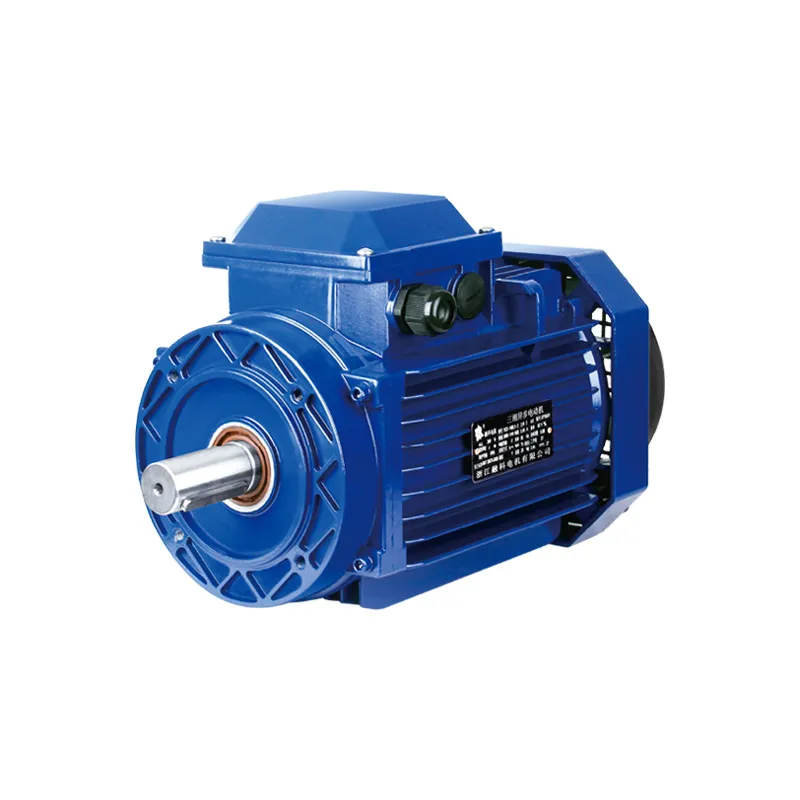

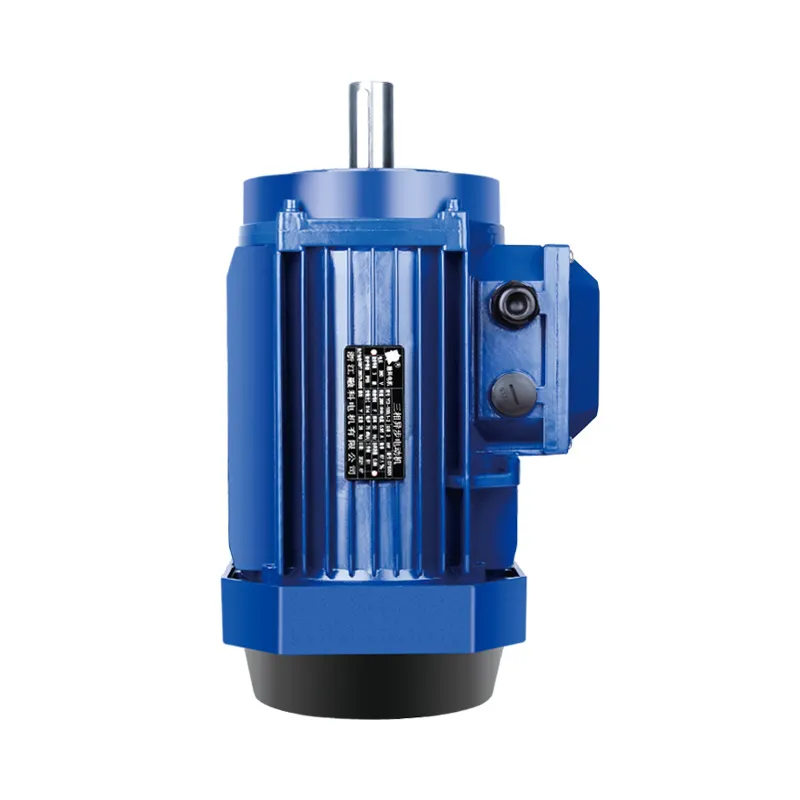

Three Phase Motor with IEC Standard Metric Frame: A Comprehensive Overview

Three-Phase Motors are widely used in industrial and commercial applications due to their efficiency, reliability, and robust performance. Among the various standards governing these motors, the International Electrotechnical Commission (IEC) standard metric frame is a critical specification that ensures compatibility, interchangeability, and global acceptance. This article delves into the key aspects of three-phase motors designed with IEC standard metric frames, covering their design, advantages, applications, and maintenance considerations.

1. Introduction to Three-Phase Motors
Three-phase motors are Electric Motors that operate on a three-phase power supply, which consists of three alternating currents (AC) that are 120 degrees out of phase with each other. These motors are preferred for industrial applications because they provide smooth power delivery, high starting torque, and better efficiency compared to single-phase motors. They are commonly used in pumps, compressors, conveyors, fans, and other heavy-duty machinery.

2. Understanding IEC Standard Metric Frame
The IEC standard metric frame defines the physical dimensions and mounting arrangements of electric motors to ensure uniformity across manufacturers. This standardization allows for easy replacement and interchangeability of motors without requiring modifications to the existing setup. Key aspects of the IEC metric frame include:
- Frame Size: Designated by a numerical value (e.g., 80, 90, 100, 112, etc.), which corresponds to the motor’s shaft height in millimeters.
- Mounting Arrangements: Includes foot-mounted (B3), flange-mounted (B5 or B14), or combined foot and flange-mounted (B35) configurations.
- Shaft Dimensions: Standardized shaft diameter and length to ensure compatibility with couplings and pulleys.
- Cooling Methods: Common types include IC411 (fan-cooled) and IC418 (totally enclosed fan-cooled, TEFC).

3. Advantages of IEC Standard Metric Frame Motors
Three-phase motors built to IEC standards offer several benefits:
- Global Compatibility: IEC standards are recognized worldwide, making it easier to source and replace motors in different regions.
- Interchangeability: Motors from different manufacturers can be swapped without mechanical adjustments.
- Efficient Design: Standardized dimensions optimize space utilization and integration with driven equipment.
- Reliability: Compliance with IEC standards ensures high-quality materials and construction, leading to longer service life.
- Energy Efficiency: Many IEC-compliant motors meet IE2, IE3, or IE4 efficiency classes, reducing energy consumption.

4. Key Components of a Three-Phase Motor with IEC Metric Frame
A typical three-phase motor with an IEC metric frame consists of the following components:
- Stator: The stationary part containing windings that generate a rotating magnetic field.
- Rotor: The rotating part, which can be squirrel-cage or wound-rotor type.
- Bearings: Support the rotor and reduce friction (commonly deep-groove ball bearings).
- Cooling Fan: Maintains optimal operating temperature (in TEFC motors).
- Terminal Box: Houses electrical connections for power supply.
- Frame: Provides structural support and ensures proper mounting.

5. Applications of IEC Standard Three-Phase Motors
These motors are used across various industries, including:
- Manufacturing: Driving conveyor belts, machine tools, and packaging equipment.
- HVAC Systems: Powering fans, blowers, and compressors.
- Water Treatment: Operating pumps and agitators.
- Mining and Construction: Running crushers, hoists, and drilling machines.
- Agriculture: Driving irrigation pumps and grain handling systems.

6. Selection Criteria for IEC Metric Frame Motors
When choosing a three-phase motor with an IEC metric frame, consider the following factors:
- Power Rating: Match the motor’s kW or HP rating to the load requirements.
- Speed (RPM): Select based on the application’s speed needs (e.g., 1500 RPM or 3000 RPM for 50Hz systems).
- Efficiency Class: Opt for higher efficiency (IE3 or IE4) to save energy costs.
- Enclosure Type: Choose between open drip-proof (ODP) or totally enclosed (TEFC) based on environmental conditions.
- Mounting Style: Ensure compatibility with the driven equipment (foot, flange, or combination).

7. Installation and Maintenance Best Practices
Proper installation and maintenance are crucial for optimal motor performance:
- Installation:
 - Align the motor shaft precisely with the driven equipment to prevent vibration and bearing wear.
 - Ensure adequate ventilation to avoid overheating.
 - Follow torque specifications when tightening mounting bolts.
- Maintenance:
 - Regularly inspect bearings and lubricate them as per manufacturer guidelines.
 - Check electrical connections for signs of wear or corrosion.
 - Monitor vibration and noise levels to detect early signs of mechanical issues.
 - Clean cooling fins and fans to maintain efficient heat dissipation.

8. Troubleshooting Common Issues
Some common problems with three-phase IEC metric frame motors include:
- Overheating: Caused by overloading, poor ventilation, or voltage imbalance.
- Vibration: Misalignment, unbalanced rotor, or worn bearings may be the cause.
- Electrical Faults: Short circuits, insulation breakdown, or phase loss can lead to motor failure.
- Bearing Failure: Contamination or inadequate lubrication often leads to premature bearing wear.

9. Future Trends in Three-Phase Motors
The industry is moving toward:
- Higher Efficiency Standards: IE4 and IE5 motors are becoming more prevalent to meet stringent energy regulations.
- Smart Motors: Integration with IoT for predictive maintenance and real-time monitoring.
- Lightweight Materials: Advanced composites to reduce weight while maintaining durability.
- Variable Frequency Drives (VFDs): Increasing adoption for better speed control and energy savings.

10. Conclusion
Three-phase motors with IEC standard metric frames are a cornerstone of modern industrial operations. Their standardized design ensures reliability, efficiency, and ease of maintenance, making them indispensable in diverse applications. By understanding their features, selection criteria, and maintenance requirements, users can maximize performance and longevity while minimizing downtime and operational costs. As technology advances, these motors will continue to evolve, offering even greater efficiency and connectivity for the industries of tomorrow.

This comprehensive overview highlights the importance of IEC-compliant three-phase motors, providing valuable insights for engineers, technicians, and procurement professionals involved in industrial machinery and automation.
